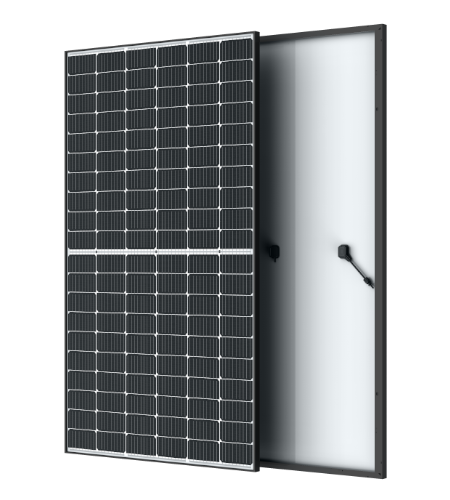

Product Image
Australia's #1 selling solar panel brand (2021)
POE encapsulant
9 Busbar cells
PVEL 'Top Performer' 8 years running
Product Indexed
Product Availability
Out of Stock
Heat Tolerance
- 0.34%/℃
Product Dimensions
1763mm x 1040mm x 35mm
Product Weight
Country of Manufacture
Product Warranty
15 Year Product Warranty
25 Year Performance Warranty
Warranted Degradation
2% First Year, 0.55% Annual Power Attenuation
Product Documents
Media Category
Product Brochure
212,967 kb

First opening their doors in 1997, and entering the New York Stock Exchange in 2006, Trina Solar is a specialist company focused on the manufacturing of crystalline silicon photovoltaic modules, and system integration.

Increased power generation with MBB & half-cut technologies

The Honey M adopts multi-busbar technologies, shortening the current conduction distance by as much as 50%, lowering internal ribbon resistance loss. Equipped with narrow and fine busbars, more sunlight will be reflected to the round ribbon, increasing energy efficiency levels further. The half-cut cell design can reduce power loss by as much as 1/4. All this results in a module with 2% higher efficiency levels than previous modules.

Reduced LCOE by improved performance

The module achieves high power generation capacity when in high irradiation zones thanks to it's multi-busbar design. The cell's half-cut design allows the PV module to work at lower temperatures, improving per watt energy generation. On top of all this, the Honey M's unique cell string structure manages to reduce energy loss due to mismatch caused by inter-row shading to a significant degree.

Exceptional reliability

The Honey M possesses low hot spot occurrence, and half-cut cell technology which reduce failures, improve safety and maximise performance. The application of multi-busbar cells prevent stress by allowing for more uniform lows, resulting in higher levels of performance, even with slight cracking.
